Henan Recycle New Design Scrap Pcb Waste Circuit Boards Dismantling Recycling Machine

PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumer made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability. It is Pre Processing before E waste Pcb Recycling Line.

Working Principle

Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works. So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.

The Whole Process:

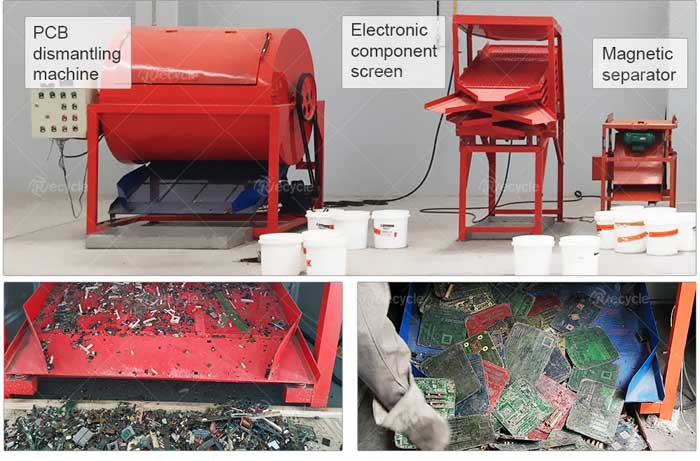

Dismantling Machine Body—Electronic Component Screen —Magnetic Separator

1. PCB Dismantling Machine Body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;

2. Electronic Component Screen: Classify the similar size electronic components in one side;

3. Magnetic Separator: Further classify these components which include iron or not.

Technical Parameters：

Model	Power (Kw)	Weight (Kg)	Capacity (Kg/H)	Dimension (m)
RSK-200	0.75+1.1+3	450	200	1.67*0.97*1.4
RSK-300	0.75+2.2+3	700	300	1.85*1.2*1.52
RSK-500	0.75+3+3	1100	500	2.1*1.27*1.74

NOTE:

Working voltage:380±10V(415V ,440V also can be customized)

(The Price depends on your capacity and configuration of the machinery;)

Features

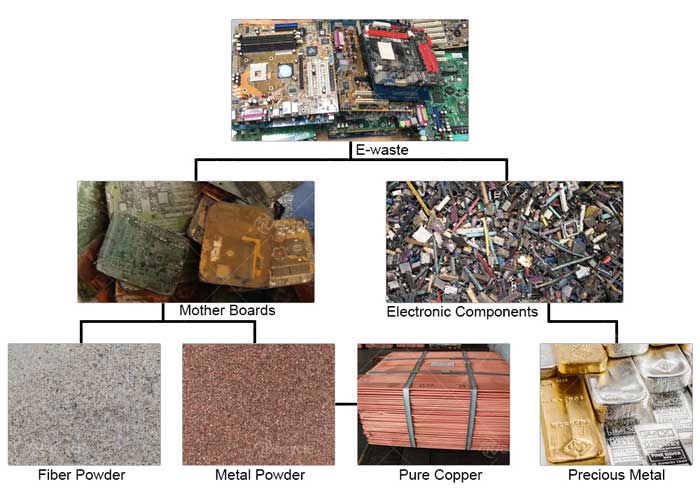

Mother board and components can be proceed respectively in the next step to improve economic benefits.

1. Full automatic working, save labor, 1-2 persons are enough;

2. Tin remove and dismantling components at one step;

3. Automatic temperature control system,controlled by PLC;

5. Large capacity: 500kg/h;

6. Operating safety and easily;

7. It can ensure the nature of electronic component and keeps its high recycle value;

8. Friendly to the air environment, all the smoke processing by the waste gas treatment system.
