Solar Panel Recycling Plant

PV Solar Panel Recycling Plant

  • Solar panel scrap photovoltaic recycling station is mainly used to recycle used solar panels. Using our own original technology, we remove the frame, remove the glass, crush and sort to get silicon, mixed metal, plastic, etc.

Product Description: Solar panel scrap PV recycling station is mainly used to recycle used solar panels. Using our own original technology, we remove the frame, remove the glass, crush and sort to get silicon, mixed metal, plastic, etc.

Recycling Technology: The rest of the components in a PV solar panel consist of good quality glass, aluminium frames, polymers, silicon, copper and silver paste (used for the printed conductors on each cell), all of which (up to 95%), can in principle be successfully recycled.

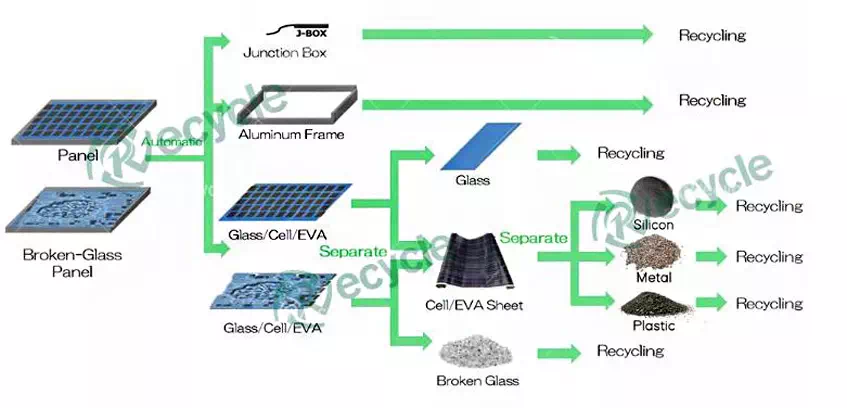

Photovoltaic Solar Panel Recycling Process

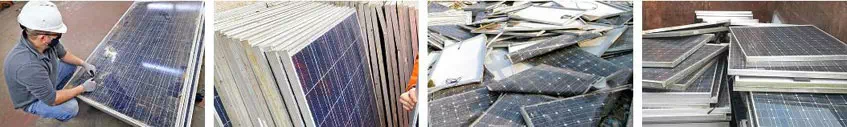

Raw Materials: Suitable for all kinds of PV solar panel waste.

Raw Materials

Final Product: We can get aluminum frame, glass frame, silicon powder, plastic, metal powder, etc.

Final Product

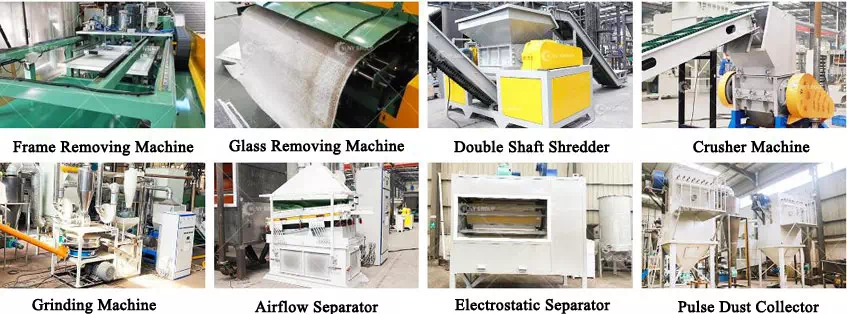

The scrap PV solar panel recycling line includes Main Equipments(As your demands):

1. Aluminium Frame Removing Machine

2. Glass Removing Machine

3. Double Shaft Shredder

4. Crusher Machine

5. Grinding Machine

6. Sorting Machines

7. Pulse Dust Collector

solar panel recycling main equipments

Technical Parameters:

ModelHSolar-300HSolar-500HSolar-1000
Capacity300 Kg/H500 Kg/H1000 Kg/H
Power102 Kw134 Kw194 Kw
Weight15 Ton20 Ton30 Ton
Dimension20*5*5m25*6*5m30*6*5m

Sales Area:

PV solar panel recycling plant sales area
