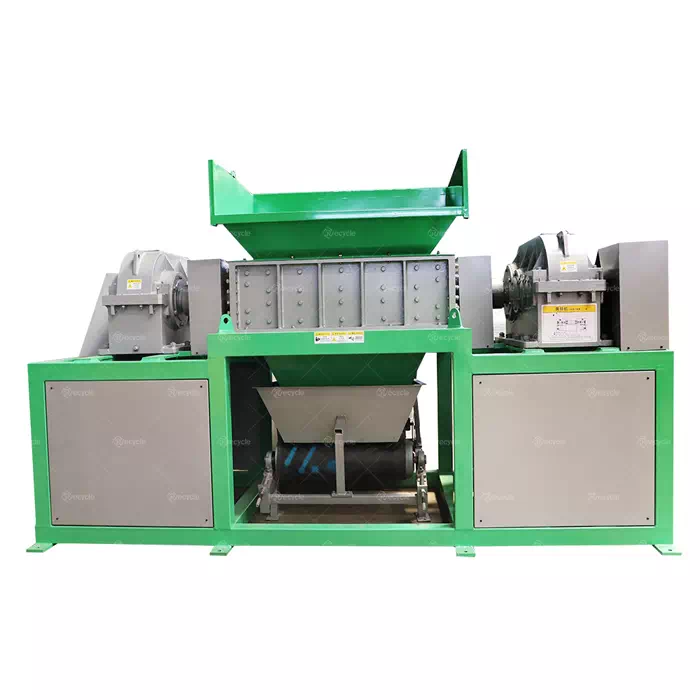

Waste Shredder Machine

SUITABLE RAW MATERIALS

1. All kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packing boxes, packing drums.

2. Used household appliances: TV, washing machine, refrigerator shell.

3. Pipe material: large pipe, pipe fitting and PE pipe.

4. Used templates: wooden pallets, plastic pallets and forklifts.

5. Used tires: car tires, truck tires.

6. Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm.

7. Cooking garbage, living garbage, RDF derivative, medical waste, biological orange pole, garden garbage.

8. Glue head material, paper mill rope.

Model	RSK-D600	RSK-D800	RSK-D1000	RSK-D1200
Motor power (kw)	7.5+7.5	15+15	18.5+18.5	30+30
Capacity (kg/h)	500-600	700-800	800-1000	1000-1200
Cutter (pcs)	22	30	30	36
Shredding room size (mm)	600x430	800x430	1000x500	1000x580
Weight (kg)	2300	3300	5000	6800

NOTE:The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;

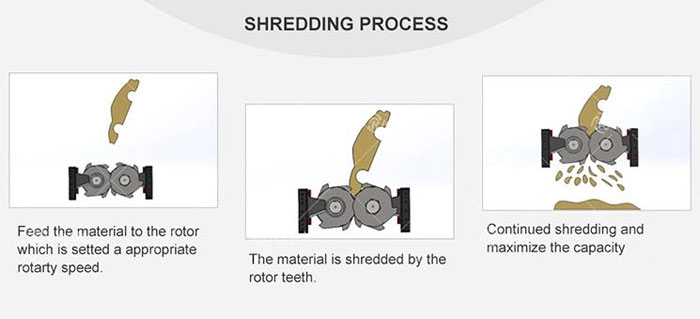

WORKING PRINCIPLE：

1. Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out;

2. Double shaft cutting system: Using different blades according customers' material;

3. Power system: We choose famous brands of motor in China, can also be configured according to customer needs;

4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

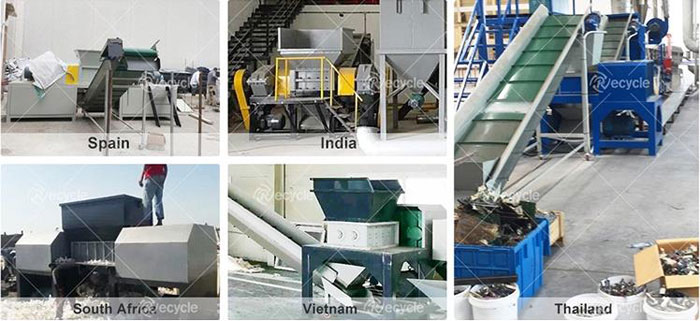

CUSTOMER SITE：
