How to disassemble and recycle scrapped motors?

Time：2023-04-04 18:52:07

Motor copper pulling machine is also called motor dismantling copper pulling machine, motor stator copper pulling machine, motor rotor copper pulling machine, which can quickly disassemble the motor coil equipment, washing machine motor stator insulation and ground automatic disassembly machine: stator winding and stator core insulation 360 degrees. The motor dismantling and copper pulling machine is a motor recycling and dismantling equipment for waste motors. It is easy to use and easy to operate. It can be operated by one person, with high efficiency and fast speed, and can bring benefits. The device uses three-phase power and a 4 kW motor. Its working principle is: first cut off the copper wire at one end of the stator on the cutter, and then pull out the copper wire from the eight claws at the other end of the stator, so as to realize the separation of copper and iron. Pull the copper coil out of the stator to complete the disassembly of the stator.

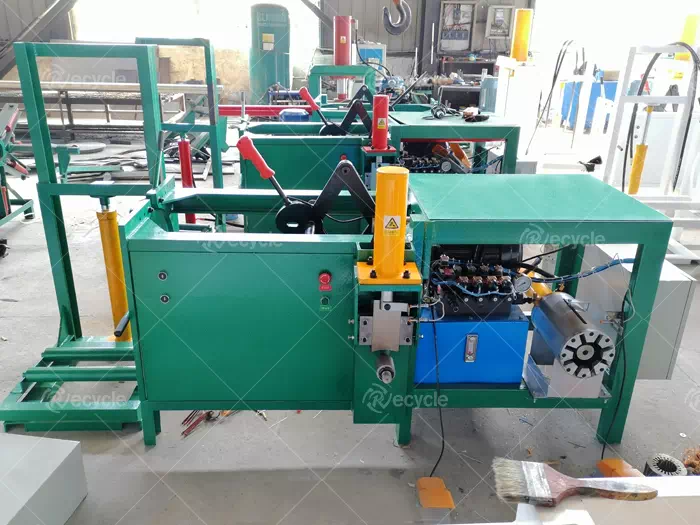

Waste motor dismantling machine production workshop

Users can recycle copper coils and stator cores according to actual conditions. Suitable for motors of different specifications, diameter φ6CM-50cm (0.55 kw motor stator diameter is about 6cm, 90K motor stator diameter is about 40CM). It is suitable for manufacturers who return multi-burning motors and manufacturers who dismantle motors. The working capacity of this equipment is equivalent to the manual disassembly of ten workers. Moreover, the steel plate is not deformed, and the recovery output can reach about 1000kg in four hours.

Production of copper wire drawing machines, motor coil dismantling equipment, washing machine motor stator automatic dismantling machine: 360-degree insulation between the stator winding and the stator core. Phase Insulation: The insulation between the stator windings of each phase. Turn-to-turn insulation: the insulation between the turns of each phase stator winding. After the three-phase winding of the stator is embedded in the slot, a total of six outgoing terminals are introduced into the junction box of the motor base.

The equipment should be operated by one person during operation to avoid misuse. High uniformity. The electric car crusher can crush iron sheets, bicycles, tricycles, car shells, briquettes, color steel tiles, waste household appliances, iron filings, safes, iron railings, etc. Stable operation; safe operation, reliable quality; small vibration, low noise, high efficiency.

The motor stator dismantling machine belongs to the motor recycling processing equipment. The purpose of recycling copper coils and silicon steel sheets is achieved by dismantling waste motor stators. Among them, some recycled copper coils and silicon steel sheets can also be reused, which can improve the economic benefits of manufacturers. It has the advantages of environmental protection and safety. It is a good regeneration equipment for manufacturers to recycle copper coils (enameled wires) and steel plates of unqualified motors, and it is also a waste metal recycling equipment.
